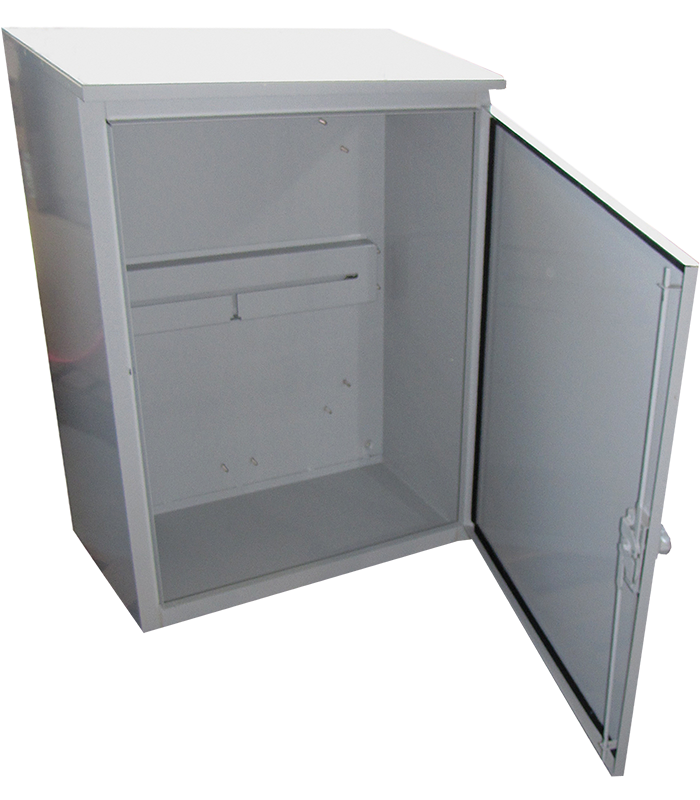

NEMA 3R Outdoor Single Door Instrument Transformer Enclosures

Construction:

• Available in 12 and 14-gauge G90 steel
• Drip-shield top and seamless sides, front and back
• Doors wrap over the top, sides, and bottom
• The right door extends and seals over the left door
• Slip-pin hinges allow for easy door removal
• Two pad-lockable pull catches; a hasp is also provided
• The backboards are exterior-grade plywood (finished on one side)
• Rainshield is welded to the top to provide NEMA 3R rating
• No gaskets or knockouts
