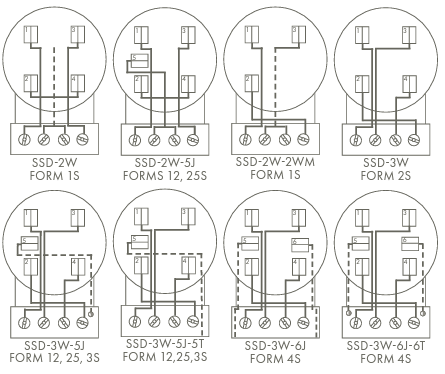

SSD Adapter Model Numbers
Click to enlarge
SSD Adapter Model Numbers
Home Adapters Meter Conversion & Installation Upgrades SSD / STR – Standard Duty Single-Phase & Transformer Rated Single-Phase A to S Adapters
LP-K7 Conversion Adapter
LP-K7 Conversion Adapter
Back to products
4900 Series - A to S Adapter
4900 Series - A to S Adapter

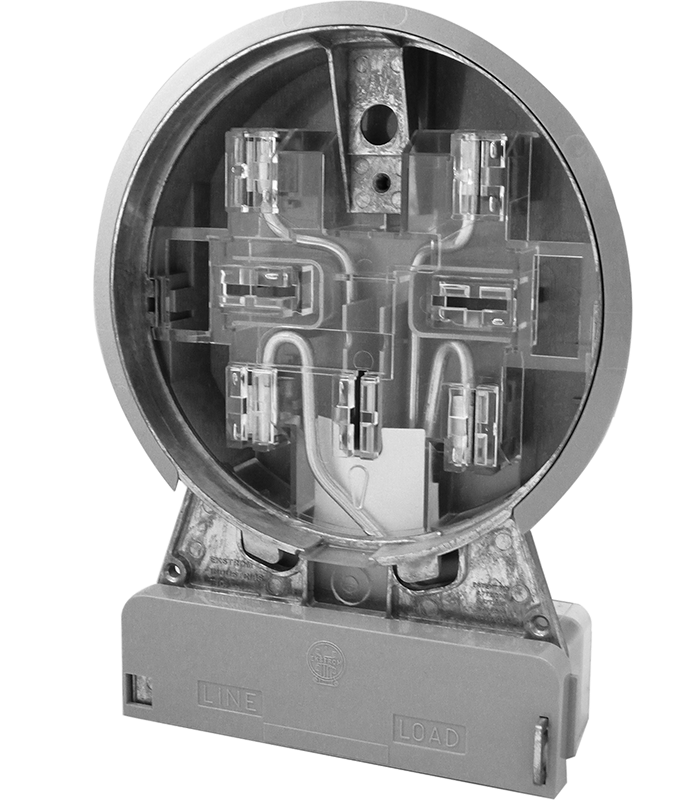

SSD / STR – Standard Duty Single-Phase & Transformer Rated Single-Phase A to S Adapters

The Brooks’ SSD (Single-Phase) Adapter is ideal for A-base installations requiring a lower continuous rating of 125 amps.

Request Quotation
This product is already in your quote request list.
Browse the Quote list
  • Description
  • Reviews (0)
Description

SSD & STR Series – Standard duty Single-Phase & Transformer-Rated Single-Phase Adapters

Features dead-front safety shield, injection-molded polycarbonate construction, die-cast grounded frame with sealing ring bonding tabs, and larger terminal collars. Adapter is rain tight and rated NEMA 3R for Indoor and Outdoor use. Many standard models are UL Listed (consult factory).

SSD (150 amp, 125 amp continuous)
Models*:

SSD-2W (1S)
SSD-2W-2WM (1S)
SSD-2W-5J (12/25S)
SSD-3W (2S)
SSD-3W-5J (12/25S)
SSD-3W-5J-5T (12/25 or 3S)
SSD-3W-6J (4S)
SSD-3W-6J-6T (4S)

STR (300 Volts, 30 Amps)
Models*:

STR-2W
STR-2W-BP
STR-3W-BP

S2 = 10-9090 Ring installed

*Each of these adapters can easily be upgraded to include a sealing ring. Simply add – S2 to the part number if you need the 10-9090 Ring installed.
SSD Data Sheet
A Base Adapter Forms
